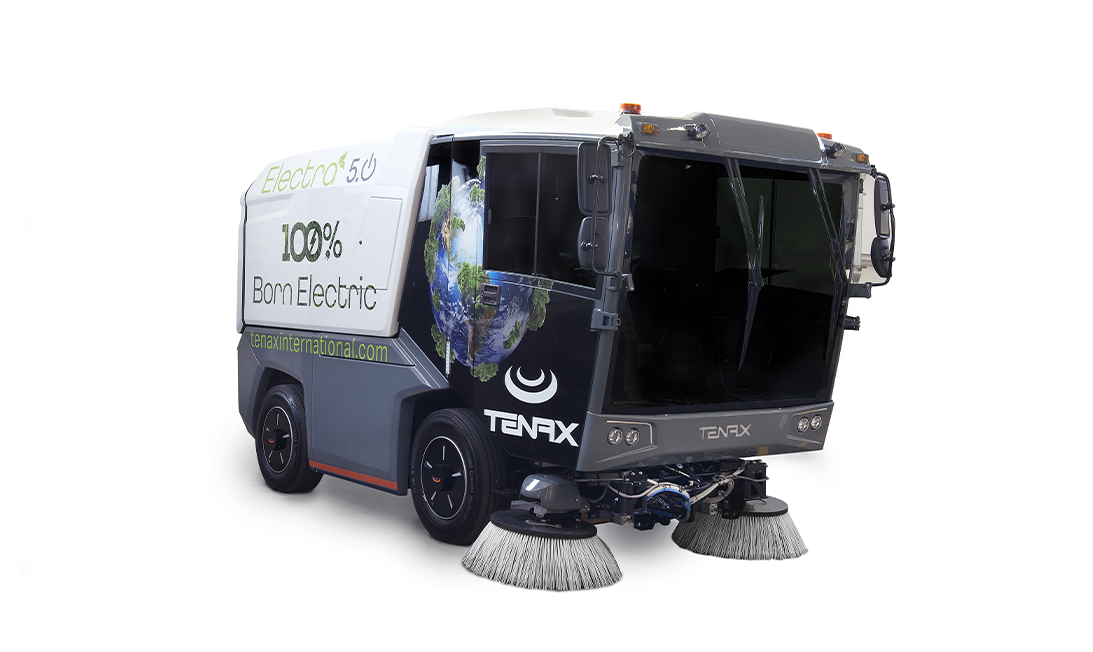

Tenax Electra 5.0
Electra 5.0 life is the first fully electric compact street sweeper with a 5 m³ load capacity and zero CO2 emissions.
Tenax Electra 5.0 life guarantees outstanding quality and reliability, thanks to exclusive 100% electric technology, the result of over 15 years of experience in the world of fully electric sweepers. In addition, Tenax Electra 5.0 life guarantees excellent sweeping quality, an extremely powerful suction system and a high load capacity. These key characteristics, together with its unrivalled comfort and exceptional stability and manoeuvrability, allow it to redefine market standards.
The secret of our 100% electric success
- Tenax Electra 5.0 can be equipped with different LiFePO4 cobalt-free battery packs and on-board and external chargers which cater perfectly to the needs and budgets of all our clients. The technology of Tenax’s cobalt-free lithium iron phosphate battery (LiFePO4) offers a series of major advantages, including:
- Tenax International is the only manufacturer of road sweepers and street washers which focuses 100% of its resources on developing fully electric solutions. Its strength lies in its extraordinary ability to design electric urban vehicles from scratch, in the ongoing pursuit of more innovative and efficient technologies.
- Tenax Electra 5.0 does not emit CO2 or nitrogen oxides, reduces sound emissions and vibrations by 40%, improving quality of life for operators and residents alike, and is undoubtedly the best solution for reducing your environmental footprint.
- Tenax Electra 5.0 fully delivers on the promise of reduced maintenance costs and high safety standards with a voltage of only 48 x 2 V. The number of moving parts and hydraulic components is kept to a minimum, which reduces maintenance costs by 70%. All the components are easy to reach and accessible, thanks to rapid side loading of the battery pack and the exclusive cab tilting system.
- Tenax Electra 5.0 boasts the highest standards of comfort and ergonomics available on the market. Its spacious cab, in addition to front and rear pneumatic suspension and unrivalled accessibility and visibility, offers the operator an extraordinary driving experience. Tenax Electra 5.0 is also equipped with a powerful electric motor with exceptionally high torque which makes it fast, smooth and stable to drive.
- Tenax Electra 5.0 is equipped with an extra-large cab, a 5 m³ waste hopper and a 750 l water tank. And thanks to its wheel diameter, compact dimensions, integral steering system and unparalleled wheelbase, it also offers a reduced turning radius ideal for city centres and congested areas.
Key Features
Four-wheel steering
LiFePO4 48 x 25 Volt lithium batteries
Waste hopper: 5 m³
Four-star PM2.5/10 certification
Runtime: 10 hours
Maximum speed: 40 km/h
Water tank: 750 L
Hexaphase electric motor
Sweeping width: 2,400 mm
Maximum gradient: 35%
Maximum weight: 10,600 kg
Technical Specifications
Steering
The tried and tested steering system provides exceptional agility and manoeuvrability, which combined with excellent directional stability allow the driver to concentrate fully on the task of sweeping.
Runtime
Electra 5.0 life is equipped with different types of 48 x 2 Volt low-voltage battery packs designed specifically for the sweeper. The option to use different types of batteries allows the sweeper to be fully adapted to each client’s specific working requirements and available budget. The tried and tested technology used minimises the environmental footprint and offers high levels of recyclability, as well as high levels of safety thanks to the low voltage.
Charging and recovery
Electra 5.0 life is equipped with an on-board battery charger which allows the batteries to be charged at any public car charging point. Electra 5.0 life can be equipped with a wide variety of external single-phase and three-phase battery chargers with different voltages, power ratings and charging times to fully meet the requirements of different customers and markets. Electra 5.0 life is also equipped with a regenerative braking system which allows the device’s runtime to be further extended.
Sweeping
The Electra 5.0 life electric road sweeper is equipped with a suction waste collection system. Two independent counter-rotating brushes, positioned in front of the front steering axle, convey the waste towards the suction inlet, and an innovative air filtration system located between the waste hopper and the centrifugal fan, with performance improved by 20%, which allows the outlet air to be filtered, increasing the efficiency of the flow. During the work phase, the self-balancing nature of each component adapts to any road surface to ensure perfect operation at all times. What’s more, the innovative brushing system composed of independent brushes significantly increases the sweeping width, without affecting the machine’s dimensions. An optional third electric front brush provides further performance gains and offers greater productivity.
Waste hopper
The strong, waterproof 5 m³ waste hopper is made from AISI 304 stainless steel.
Driving comfort and safety
The ergonomic and soundproofed waterproof aluminium cab of theElectra 5.0 life sweeper offers a very high level of comfort to the operator along with a unique driving experience, thanks to the large windows. Equipped with three adjustable and anatomic shock-absorbing seats, it allows the operators to work in total comfort and safety with minimal vibration and unparalleled soundproofing. The ergonomic and intuitive control display, featuring a user-friendly interface and cutting-edge graphics, offers a major plus in the operator’s day-to-day sweeping work.
Connectivity
Fleet monitoring and digitalisation via Tenax Link facilitates the everyday work of both owners and operators. Tenax Link offers targeted services and support, with constant monitoring to minimise downtime and operating costs. The goal is to guarantee optimum use of the sweepers by eliminating all operating inefficiencies.
Compact dimensions
The compact exterior dimensions and limited total mass of Electra 5.0 life make it extremely convenient and easy to manoeuvre in urban street contexts.
